Corrugated Steel Double Layer Roll Forming Machine Metal Roofing Panel Roll Formers

Corrugated Steel Double Layer Roll Forming Machine Metal Roofing Panel Roll Formers
Corrugated Steel Double Layer Roll Forming Machine Metal Roofing Panel Roll Formers
Corrugated Steel Double Layer Roll Forming Machine Metal Roofing Panel Roll Formers Corrugated Steel Double Layer Roll Forming Machine Metal Roofing Panel Roll Formers

बड़ी छवि :  Corrugated Steel Double Layer Roll Forming Machine Metal Roofing Panel Roll Formers

उत्पाद विवरण:
Place of Origin: Botou Hebei China
ब्रांड नाम: HC
प्रमाणन: ISO/CE
Model Number: HC25-18
भुगतान & नौवहन नियमों:
Minimum Order Quantity: 1set
मूल्य: 12000-17000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

Corrugated Steel Double Layer Roll Forming Machine Metal Roofing Panel Roll Formers

वर्णन
Warranty: 18 month control system: Panasonic PLC
cutting method: hydraulic cut working speed: 8-10m/min
हाई लाइट:

sheet metal roll forming machines

,

corrugated roll forming machine

Product Description

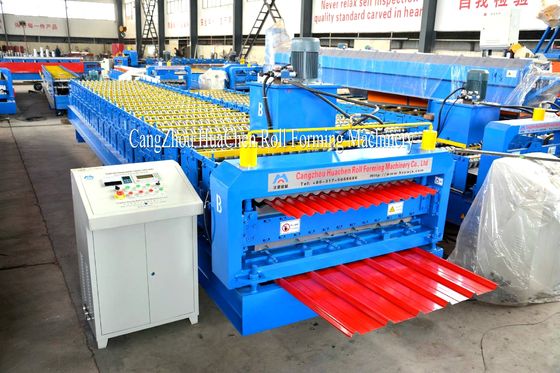

Double layer roll forming machine with the capable of forming a limited site area in two sections, and can quickly transform products, affordable, can be the perfect combination of the two models of devices into one, two plate replacement time becomes shorter, and also improve the rate of output.

Manual Un-coiler
◊ Max Capacity: 5000kgs
◊ Inner diameter of coil: 400-600mm
◊ Manual with brake
Leveling Device
◊ Ensure the material level and straight
◊ The width can be adjusted
Auto Main Forming System
◊ Max Feeding width:1220 mm
◊ Product width: 1000 & 1020 mm
◊ Thickness of sheet: 0.2-1.0mm
◊ Motor Power: 5.5 kw forming system
◊ Roller material: C45 steel
◊ Diameter of shaft: Upper level 95 mm Down level 95 mm
◊ Forming station: Upper level 12 stations. Down level 12 stations.
◊ Base Frame: 360 H steel welded..
Hydraulic Cutting Device
◊ Cutting way: pause to cut.
◊ Oil pump station 1set.
◊ Hydraulic power: 4 kw hydraulic system.
◊ Blade Material: CR12 with heat treatment HRC60-62.
Electrical System
◊ Control system: HMI & PLC control panel.
◊ Power: 440V 50Hz (as per local requirement)
Run-out Table
◊ Frame: 8# steel groove welded
◊ Roller type.
◊ Quantity: 1 pc

 Corrugated Steel Double Layer Roll Forming Machine Metal Roofing Panel Roll Formers 0Corrugated Steel Double Layer Roll Forming Machine Metal Roofing Panel Roll Formers 1



Why choose us?
1.We can make and design all kinds of roll forming machine according to customer’s requests.
2.This is a very perfect and durable equipment. We have more than 13 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers’ requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
