उत्पाद विवरण:
|

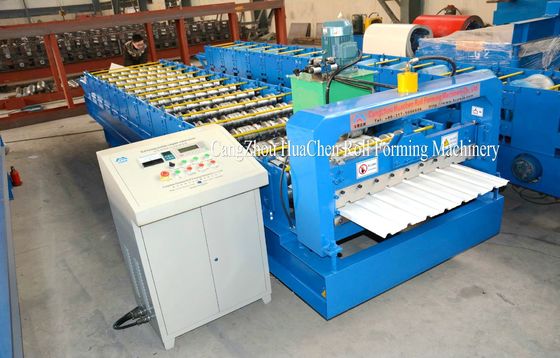

| Type: | 0.4 - 0.8mm Thickness Wall Panel Roll Forming Machine For Garden , Hotel | Usage: | Wall |
|---|---|---|---|
| Machine power: | 4+4KW | Speed: | 15-20m/min |
| Worker: | 1-2only | life time: | 20 years |
| हाई लाइट: | sheet metal rolling equipment,roof sheet making machine |
||
1.PLC computer control
2.no noise, no shake
3.hydraulic system, long life operating
4.easy operation
5.maintenance-free
|
Suitable to process
|
Color steel plate
|
|
Width of the plate
|
1040mm
|
|
Rollers
|
12rows
|
|
Dimensions
|
5.8*1.6*1.5m
|
|
Power
|
4+4kw
|
|
Thickness of the plate
|
0.3-0.6mm
|
|
Productivity
|
8-10m/min
|
|
Diameter of the roller
|
Φ70mm
|
|
Weight
|
3-5t
|
|
Voltage
|
380V 50Hz 3phases
|
|
Material of the cutting plate
|
Cr12
|
|
Hydraulic
|
40#
|
|
Processing precision
|
Within 1.00mm
|
|
Control system
|
PLC control
|
1.Technology:We have centers and innovative designing teams for different kinds of production lines.
2.After Sale Service:Warranty period 1 year , after this period , we are willing to give help if customer needs accessory . The real cooperation will not end at the delivery . we believe that satisfied after sale service means a lot.
3.Inspected by the Sellers:After completing the manufacturing and assembling of the equipments, we will test the machines and commissioning in the workshop.
4.Inspected by the Buyers:After confirmation of a sound work of the line, we will invite our customer to send their representatives to inspect the production lines in our factories.
