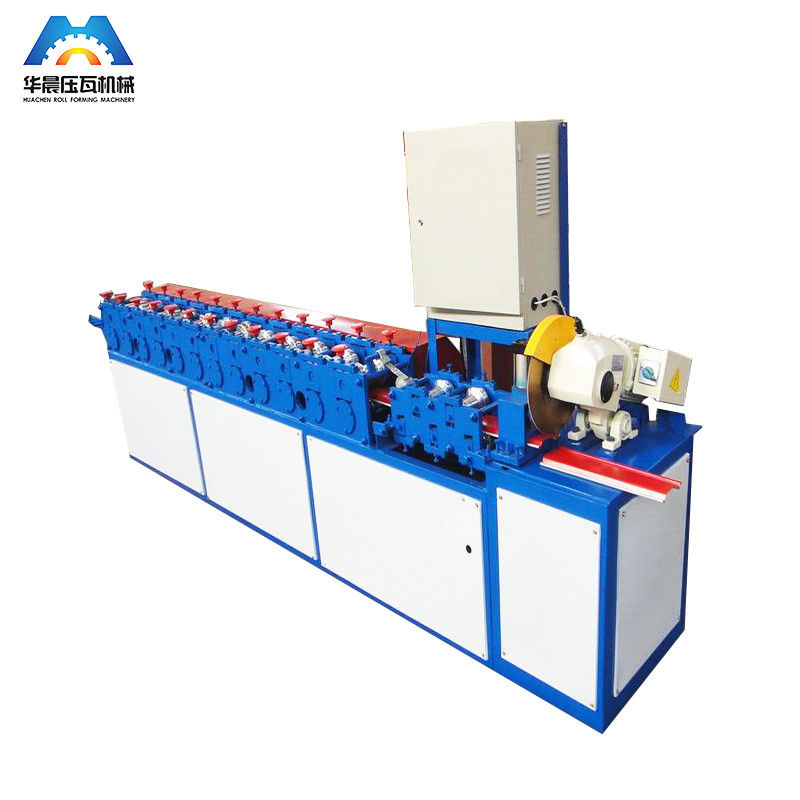

Hydraulic Rolling Shutter Door Roll Forming Equipment Door Frame Roll Forming Machine

बुनियादी जानकारी
Place of Origin: Botou Hebei China
ब्रांड नाम: HC
प्रमाणन: ISO/CE
Model Number: HC110
Minimum Order Quantity: 1set
मूल्य: 5000-19000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
विस्तार जानकारी
color: blue control system: PLC control
cutting method: fly saw cutting speed: 8-10m/min
हाई लाइट:

steel roll forming machine


door frame roll forming machine

उत्पाद विवरण

Process Flow

The chart of process flow

Hydraulic Door Frame Press Shutter Door Roll Forming Machine with PLC system

Decoiling—active feeding (put the coil strip into the first feeding roller)—leveling —roll forming —computer control system—hydraulic cutting—product to stand


Product Description

Equipment technical parameters

Molding host Model Shibo- shutters slat roll former
Forming size 4500mm*1500mm*1300mm
weight 2.5 T
Host big frame structure Frame welded
Roll station 14row
Axial material 45# steel
Out diameter of shaft Φ75mm
Roller materials 45# steel hard chromium plating
Drive By chain
Sprocket chain 1 inch
Main power 4 + 4 kw
Working speed 8-12 m/min
Material thickness 0.3-0.8mm
  Made board 25mm


Hydraulic shearing

Material of blade Cr12,heat treatment 60-62HRC
Shearing system

shutters slat forming machine is controlled by gear wheel oil pump. After

filling the hydraulic oil into the hydraulic oil tank,

the pumps drive the cutter machine to begin the

cutting job.

The system includes a set of hydraulic tank, a

set of hydraulic oil pump, two hydraulic pipes.

And two sets of electromagnetism valves.

Power of the oil pump: 3kw

Hydraulic oil :40#


Electrical system


Main computer control cabinet

shutters slat roll former adopts industrial computer to control. The target piece’s

length is adjustable and digit of it can be adjusted. Computer

mode has two modes: automatic and manual one. The system

is easy to operate and use.

Processing precision : within 1.00mm

It contains liquid crystal screen, programmer, transformer

for the electronic machines and kits of every part.

Transducer brand is EURA.

The seller will provide Chinese and English language screen.

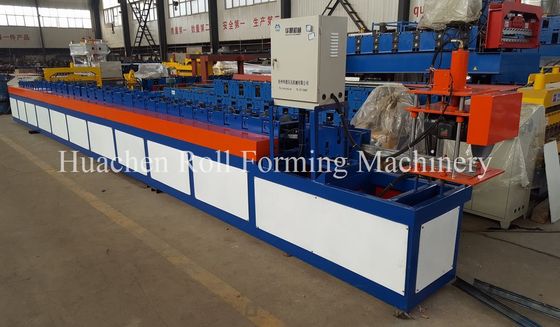

Hydraulic Rolling Shutter Door Roll Forming Equipment Door Frame Roll Forming Machine 1

Q1:If our country's voltage is different from yours, how to solve that?
A1:The usual voltage is 380v,220v,415v. If yours are not one of them, we will design the electric motor to suit your voltage.
Q2:We bought your shutters slat roll former, but we couldn't install and debug it?
A2:Don't worry about that, when finished the machine, we will send you the manual book which shows how to use the machine; if you still don't know, we can record a video to teach you how to operate the machine.
Q3:About the after service, what you can serve?
A3:All the machines are two years guaranteed, life maintenance. We can send the technician abroard, but you should pay the round-trip cost.
