Joint Hidden Wall Panel Roll Forming Machine Material Thickness 0.2 - 0.6mm

प्रमाणन
अच्छी गुणवत्ता पाटन शीट रोल मशीन बनाने बिक्री के लिए
अच्छी गुणवत्ता पाटन शीट रोल मशीन बनाने बिक्री के लिए
मशीन उपयोग में आसान बॉस बहुत अच्छा है।

—— यूरोप से Mr.Angolon

यह एक अच्छा निर्माता, एक अच्छा अंग्रेजी संचारक है, और मुझे आपकी मशीनें पसंद हैं यह अच्छी गुणवत्ता, और सुंदर है!

—— अफ्रीका से मि। मर्क

अच्छा आपूर्तिकर्ता! मुझे आपकी स्विफ्ट डिलीवरी और त्वरित उत्पादन चक्र पसंद है, आप लोगों से संपर्क बना रहेगा।

—— अमेरिका से Mr.Jack

मैं अब ऑनलाइन चैट कर रहा हूँ

Joint Hidden Wall Panel Roll Forming Machine Material Thickness 0.2 - 0.6mm

चीन Joint Hidden Wall Panel Roll Forming Machine Material Thickness 0.2 - 0.6mm आपूर्तिकर्ता

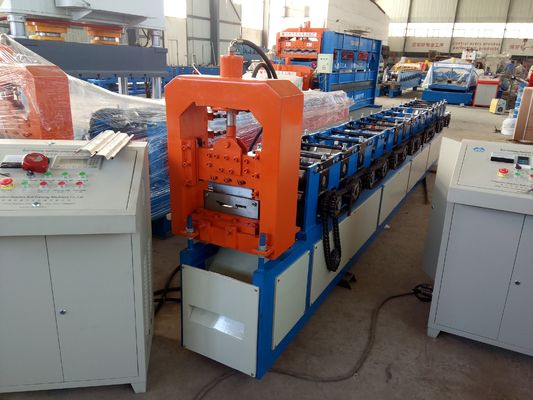

बड़ी छवि :  Joint Hidden Wall Panel Roll Forming Machine Material Thickness 0.2 - 0.6mm

उत्पाद विवरण:

Place of Origin: Botou Hebei China
ब्रांड नाम: HC
प्रमाणन: ISO
Model Number: HC12

भुगतान & नौवहन नियमों:

Minimum Order Quantity: 1set
मूल्य: 8000-15000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
विस्तृत उत्पाद विवरण
Approval: ISO Suitable Material: HRB60 or equivalent
Material Thickness: 0.2-0.6mm Roller: High grade 45# steel

HCHot sale automatic 735 zt colored steel wall panel roof tile cold roll forming making machine price



Main Technicial Parameter:

1 Inner diameter of manual decoiler 480-510mm
2 Outer diameter of manual decoiler 175mm
3 Weight capacity of manual decoiler 2T
4 Appearance Size 5800mm*1350mm*1510mm
5 Raw Material colored steel or galvanized steel
6 Roller material high grade 45# forged steel,polished,heated,quenched
7 Blade Material CR12 with polished,heated and quenched HRC60-62
8 Chrome Coating coated with 0.05mm hard chrome
9 Control System PLC control
10 Main Motor Power 5.5 KW
11 Hydraulic Power 3 KW
12 Roller station 14- rollers(as final profile drawing)
13 Material of chain high grade 45# steel:polished,heated,quenched HRC 45-50
14 Speed of Product 3-4m/min
15 Thickness range 0.3-0.8mm
16 Type of cutting hydraulic cutting
17 Coil Width max1250mm,or as your requirement
18 Cover Width as your requirement
19 Material of rack complete welded structure of A3 steel plate
20 Machine frame stand welded with 36# I-steel
21 Type of forming machine single station with chain transmission
22 Thickness of frame 18mm
23 Shaft Diameter 70mm
24 Weight about 4T
25 Voltage 380V 50HZ 3Phases( or as your local requirement)
26 Electrical control PLC frequency control system with touch screen in Engli

Specifications

Welcome to review our roll forming machine
complete service
Experienced engineers

Man-made uncoiler-Roll forming machine-compture control system-hydraulic control system-form cutter

IntroducationMachine consist of uncoiler and its base, coil sheet guiding equipment, film covering device, roll forming system, post cutting equipment, hydraulic station, controlling system, supporter table.



FAQ

Q: Can you make the machine according to my design or prototype?

A: Yes. We have an experienced team for working out the most suitable design and production plan for

the machine that you are going to book with us

Q: What do you need to know so that I can have a machine plan from you for our technical people reference?

A: Well, as the basic needed information for designing a machine plan, pls see below details For the slitting

line and cut-to-length: the material type(HR, CR, HDGI, PPGI, SS), thickness and width range, coil weight, cutting speed, slitting numbers(only for slitting line), steel plate required cutting length(only for cut-to-length line) For the C,Z,W Profile and roof/wall panel roll forming machine: the material thickness range,

width range and the profile drawing are required(how many roll forming stands required are depended on the profile drawing) For the HVAC machine and

the stainless steel pipe machine: the wall thickness range and the diameter range of the pipe Pls also provide

us with your special requirements for the machine, for example, you want the machine to be a full-automatic one or semi-automatic one in order to save your project.





Joint Hidden Wall Panel Roll Forming Machine Material Thickness 0.2 - 0.6mm
