1 मिमी स्टड रोल बनाने की मशीन 20-40 मीटर / न्यूनतम शीत प्रकार

1 मिमी स्टड रोल बनाने की मशीन 20-40 मीटर / न्यूनतम शीत प्रकार
1 मिमी स्टड रोल बनाने की मशीन 20-40 मीटर / न्यूनतम शीत प्रकार

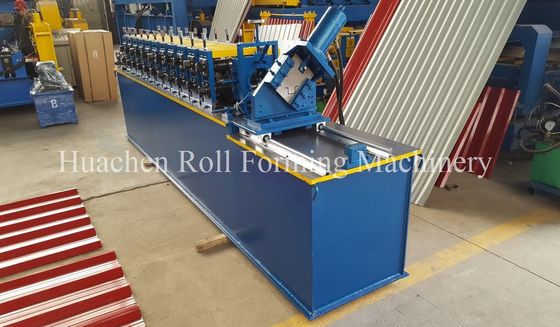

बड़ी छवि :  1 मिमी स्टड रोल बनाने की मशीन 20-40 मीटर / न्यूनतम शीत प्रकार

उत्पाद विवरण:
उत्पत्ति के प्लेस: Botou Hebei China
ब्रांड नाम: HC
प्रमाणन: ISO
मॉडल संख्या: HC35
भुगतान & नौवहन नियमों:
न्यूनतम आदेश मात्रा: 1set
मूल्य: 12000-38000
पैकेजिंग विवरण: Main machine is nude,the computer control box is packed by carton box
प्रसव के समय: 30days
भुगतान शर्तें: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
आपूर्ति की क्षमता: 20 sets/month

1 मिमी स्टड रोल बनाने की मशीन 20-40 मीटर / न्यूनतम शीत प्रकार

वर्णन
प्रयोग: स्टड और ट्रैक प्रकार: कोल्ड रोल बनाने की मशीन
मोटाई: 0.5-1 मिमी क्षमता: 20-40 मीटर / मिनट
शक्ति: 4.5+3kw प्लेट की मोटाई: 0.3-0.6 मिमी
हाई लाइट:

1 मिमी स्टड रोल बनाने की मशीन

,

40 मीटर / मिनट स्टड रोल बनाने की मशीन

,

ठंड प्रकार स्टड रोल पूर्व:

Metal Stud C Channel Cold Roll Forming Machine Prices/ c light keel steel machine

Technology parameter of metal stud light keel cold roll forming machine



No. Main Parameter of keel roll forming machine
1 Suitable to process Color steel plate
2 Rollers 10 rows
3 Dimensions 5500*1000*1300mm
4 Power 5.5+4kw
5 Thickness of the plate 7-1.2mm
6 Productivity 0-35m/min
7 Diameter of the shaft ∅50mm
8 Material of the roller Cr12 Mov
9 Control system integrated circuit
10 Material of the shaft high grade 45# steel ,heated and quenched ,cylindrical grinding

Producing process:

Decoiler -active feeding-forming -caculate length --automatic cutting --product

1 मिमी स्टड रोल बनाने की मशीन 20-40 मीटर / न्यूनतम शीत प्रकार 01 मिमी स्टड रोल बनाने की मशीन 20-40 मीटर / न्यूनतम शीत प्रकार 11 मिमी स्टड रोल बनाने की मशीन 20-40 मीटर / न्यूनतम शीत प्रकार 21 मिमी स्टड रोल बनाने की मशीन 20-40 मीटर / न्यूनतम शीत प्रकार 3

Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.

Q: Once we've bought a machine from you, are you able to supply us with material?

A: We can assist you in finding the appropriate materials to suit your machine

Q: Do you sell only standard machines?

A: No, most of our machines are built according to customers specifications, using top brand name components

Q: What size decoiler can you supply us with?

A: From 5-ton decoiler to a 25-ton motorised hydraulic decoiler

Q: Do you have a warranty on your machines?

A: One year warranty excluding electrical components.

Q: What sales terms do you have?

A: Terms mutually agreed on and we do accept Letter of Credit by pre arrangement.

Q: Do you have instruction manuals?

A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings

Q: Once a machine arrives at our factory what happens then?

A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.

Q: What do I need to offload my machine from the container?

A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.

Q: My current machine rollers need to be replaced. Would you be able to assist me?

A: Yes. Send us your profile and specifications then we will manufacture the rollers for you

Q: What kind of controls do you use on your machines?

A: AMS, Delta, Schneider, Siemens, and Mitsubishi

Q: What is your delivery time?

A: Depending on the type of machine, duration of 25 days to 185 days from date of order.

Q: Do we receive any updates while machine is in the manufacturing process?

A: Yes.Regular updates on progress will be sent to you.
